It’s all about the detail…

Our profile options allow you to customise profile details to get the finish you require. Our options allow you to match very closely to existing details allowing you to replicate them whilst adding all of the performance features of our windows.

We offer a very comprehensive window design process whereby you can choose from a range of frame styles, timber profiles, glazing profiles and installation options.

Casement windows

For outward opening flush casement windows, the following options will need to be specified. Please note, matching sash bead and astragal bar
profiles are available.


Internal frame profile
Standard
Ovolo

Pencil Round

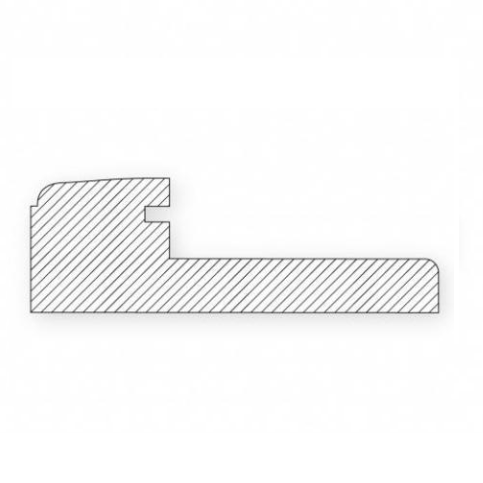

External frame profile
Bevelled Extended
Ovolo Extended
Pencil Round Extended

Drips

If your windows are fitted flush with the outside brickwork, we recommend that a head drip is fitted.

Head Drip
Transom Drip Type 1
Transom Drip Type 2
Transom Drip Type 3

Sliding sash windows

Applicable only to sliding sash windows, top and/or bottom sashes can be specified with traditional sash horns. We offer the following types, but if required we can match existing designs.


Type A
Type B
Type C
Type D
Type E
Type F
Type G

Glazing bead & sash bar options

For all of our window designs, the following options will need to be specified. Please note, matching sash bead and astragal bar profiles are available.

Beading

In the Traditional Range, all window sashes are internally beaded to enhance performance and longevity. You can choose from three designs: standard, ovolo and pencil round.

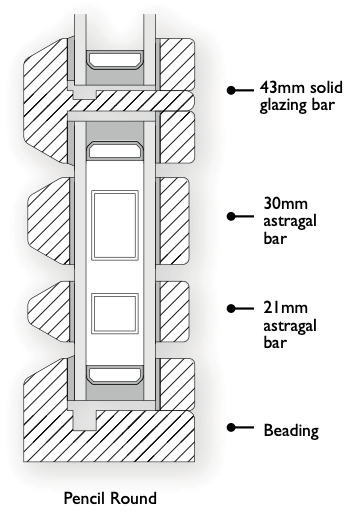

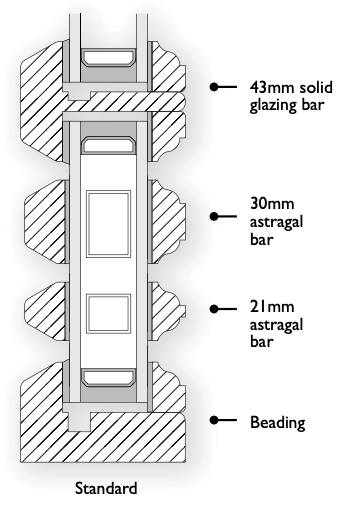

Glazing bars

If specified, astragal bars are matched with the outside sash profile and internal glazing bead. For aesthetics, where astragal bars are specified, glazing units are supplied with inter-bars as standard.

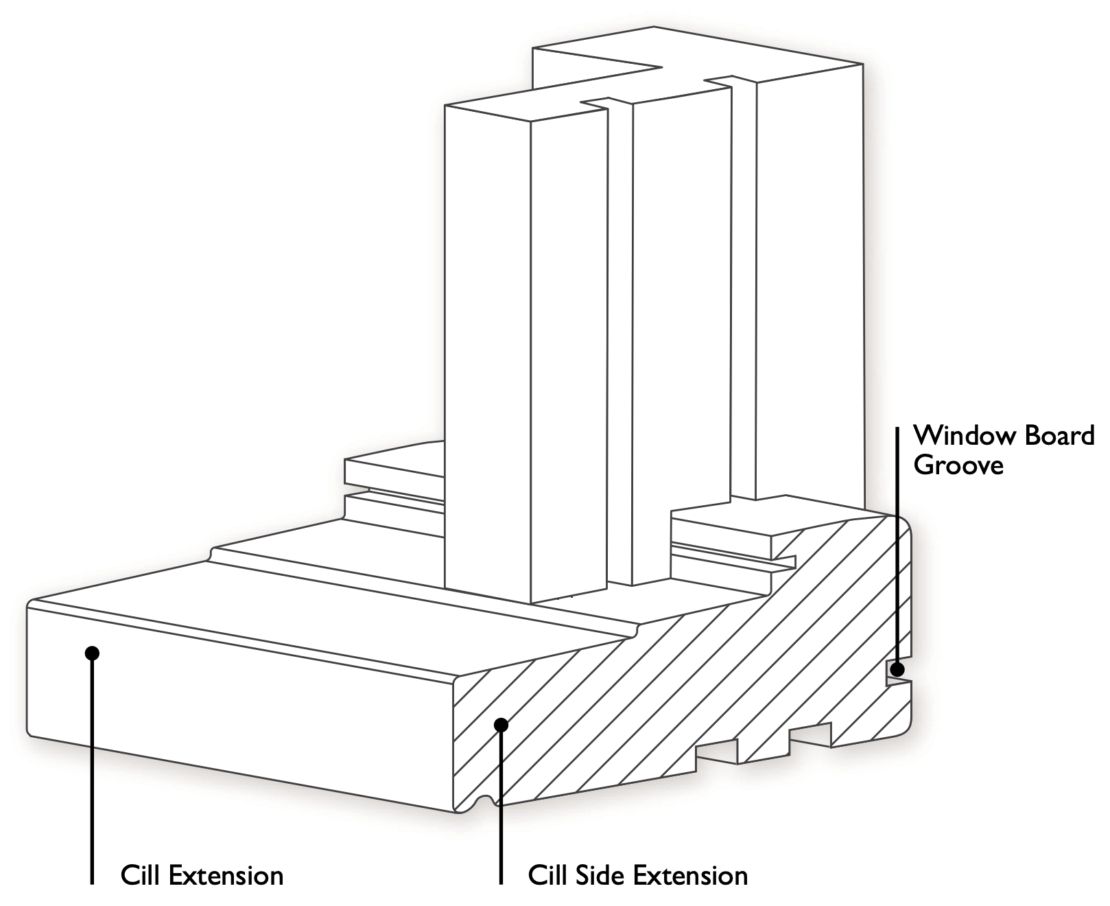

Installation options

Our installation options allow you to specify details to ensure that the window fits into the property correctly. We will usually ensure that these are specified accurately in the order processing phase.

Cill extension
Allows the cill to extend over the brickwork.
As standard we offer 30, 50, 70, 90 and
110mm# extensions.

Cill side extension (CSE)
Many replacement windows require cill side
extensions. As standard we offer 25, 50, 75
and 100mm extensions.

Window board groove (WBG)
Our windows can be specified with a
window board groove. We have the option
of no groove, as well as offering a range of
window boards.
