The perfect solution for your Juliet balcony

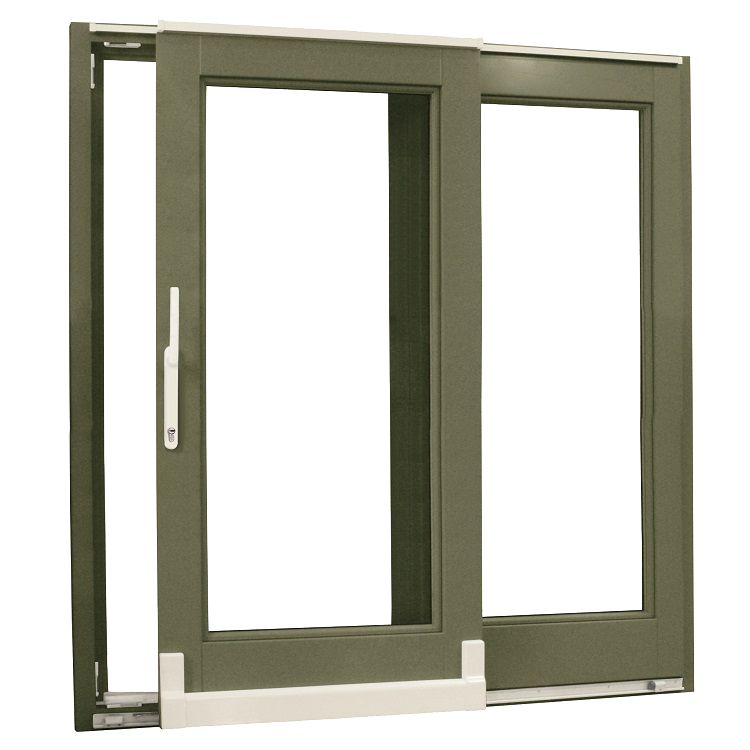

Timber tilt and slide patio doors offer outstanding flexibility, whilst giving you the ability to provide ventilation without having to slide the entire door open. This makes them the perfect solution for Juliet balconies, where ventilation and uninterrupted views are the main priorities.

Similar to the sliding door design, the timber tilt and slide patio door incorporates innovative features to allow it to be operated with ease. This includes a specialist handle and low-resistance rollers. Rotating the specialist handle anti-clockwise by 90 degrees allows the top of the door panel to tilt inwards, providing an opening for ventilation. For security, the handle can be locked in this position for nighttime use.

Tilt and slide patio door benefits

Weather rating

Our timber tilt and slide patio doors are tested to exposure category 2000

Thermal performance

A rated as standard; Triple glazed options available

Secure ventilation

The specialist handle enables our tilt and slide patio doors to be locked with a 10mm gap to provide secure ventilation

Sustainability

Environmentally friendly designs, materials and processes

Acoustic performance

Great performance as standard and extensive test data to guide specification for optional enhanced acoustic performance

Glazing

Security laminated glazing

Option for improved acoustic performance and safety

Draught proofing (Wind load)

Dual seal design provides excellent draught proofing

tilt and slide patio doors with personality

With a renowned selection of customisation options, our tilt and slide patio doors can be adapted to your taste

FEATURE

Timber profiles

FEATURE

Colours & finishes

stained-glass

FEATURE

Glazing options

sliding sash window

FEATURE

Design & furniture

tilt and slide patio door case studies

See the projects where this product has been installed.

One palace street

CASE STUDY

London’s Premier Address Deserves Premier Fenestration

tilt and slide patio door Technical specifications

Performance and technical specifications are both available for our Tilt & Slide Patio Doors.

Performance

ThermalAs StandardBest
U-Value1.30.9
Energy Rating----
g-Value71%As Required
LT81%As Required
Acoustic
RwSpec Dependant
Weather
Classification--
Air--
Wind--
Water--
Operation & Strength
ClassificationPass (BS6375 Part 2)
Security
PAS 24 / Part QPass (as option)
Sustainability
FSC Chain of CustodyYes

CAD Drawings

DesignDownload Options
68 x 68 mm

NBS Data

DesignDownload Options
Tilt and Slide Door
Inward Tilt and Turn Door Set

Performance

ThermalAs StandardBest
U-Value1.30.8
Energy Rating--A++
g-Value71%As Required
LT81%As Required
Acoustic
RwSpec Dependant
Weather
Classification--
Air--
Wind--
Water--
Operation & Strength
ClassificationPass (BS6375 Part 2)
Security
PAS 24 / Part QPass (as option)
Sustainability
FSC Chain of CustodyYes

CAD Drawings

Sorry, no CAD Drawings are available for this product yet, please contact us.

NBS Data

Sorry, no NBS Data is available for this product yet, please contact us.

Looking for other styles? Browse our range

Find out more about the range of timber windows and doors we manufacture.

timber tilt and sliding door tilt position

PRODUCT

Tilt & Sliding Doors

green sliding patio doors on a house beside the river Witham

PRODUCT

Timber Sliding Doors

french doors in living room with views across Lincolnshire countryside.

PRODUCT

Timber French Doors

bifold doors opening out into the garden from the kitchen

PRODUCT

Bifold Doors

Our guarantees

Industry leading reassurance.

View our brochures

View our comprehensive range.

Contact us

Always here to help you deliver.

George Barnsdale's expertise in tilt and slide patio doors

George Barnsdale are established as an expert in tilt and slide patio doors, by combining traditional craftsmanship with modern timber engineering.

Our expertise dates back to 1884, with over a century of heritage in timber tilt and slide patio doors.

Find out more about our background as timber window and door specialists here

Our Made in Britain certification

We are proud to hold the Made in Britain certification, a testament to the fact that our tilt and slide patio doors are designed and manufactured right here in the UK.

Discover how our Made in Britain certification guarantees tilt and turn patio doors you can trust for a lifetime.

Made in Britain

Future security with
tilt and slide patio door guarantees

Get in touch with George barnsdale for tilt and slide patio door support

At George Barnsdale, we provide comprehensive support for  tilt and slide patio doors, ensuring a seamless experience.

Our team provides detailed technical guidance, CAD drawings, and installation advice to guarantee a perfect fit and optimal thermal performance for every project. Contact us today to plan your dream tilt and slide patio door project

Tilt & Slide patio Doors: Frequently Asked Questions

Tilt and slide patio doors are a versatile door system designed for modern living spaces. They combine the functionality of a traditional sliding door with the added benefit of a tilt function. This allows the door to tilt inward at the top, providing secure ventilation without fully opening the door.

Our doors provide excellent security with multi-point locking and advanced cylinder locks. We test all our doors to PAS-24 and Secured by Design.

Our Tilt and slide patio doors from George Barnsdale are designed with security in mind, offering advanced features to keep your home safe. These doors are crafted using premium timber and are fitted with multipoint locking systems to prevent forced entry.

We provide an extensive range of stain and paint colours for any taste or style. We also provide bespoke colour-matching services to ensure that we can replicate your favourite paint shades from leading manufacturers. Whether you need a classic finish or a bold statement, we will bring precision into your vision.

Yes, we make our tilt and slide patio doors available in single, double or triple glazing. Moreover, you can also have optional integral blinds. The latest building regulations require the highest levels of thermal performance, and often triple glazing is the only way to achieve this unless you opt for vacuum glass.

It’s important to keep on top of maintenance with our products. Start by cleaning the timber frame regularly with a soft cloth and mild soapy water to remove dirt and prevent grime build-up. Avoid using harsh chemicals that can damage the finish of the timber. Give special attention to the sliding tracks, as debris can cause interference in the smooth operation of the doors. Use a vacuum or a soft brush to clear the tracks, and apply a silicone-based lubricant periodically to keep the sliding mechanism running easily.

Consider applying varnish coats or repainting the surface if needed. Weather seals and gaskets should be in good condition to enable energy efficiency and protect against draughts. Finally, check the hardware parts for hinges, locks, and handles to make sure that they are in a good position, free from air leaks, and still functioning well.

Yes, tilt and slide doors are designed with safety in mind. They feature robust locking mechanisms and materials that provide excellent security against forced entry. The tilt function also allows for secure ventilation, as the door remains locked in place while tilted.

Yes, our timber tilt and slide doors are crafted using sustainably sourced timber, making them an eco-friendly choice. Also, their efficient design contributes to reducing your carbon footprint.

Yes, all George Barnsdale timber tilt and slide doors are backed by our guarantees. This covers the craftsmanship, materials, and performance, ensuring your peace of mind. Our guarantees reflect the rigorous testing and standards we adhere to during the manufacturing process.

One common issue with tilt and slide doors is difficulty in operation, often caused by debris or dirt accumulating in the sliding track. Over time, this can make the door harder to slide or tilt smoothly. Regular maintenance can prevent this problem. For persistent issues, it’s best to consult a professional or contact George Barnsdale’s team for advice and support.
